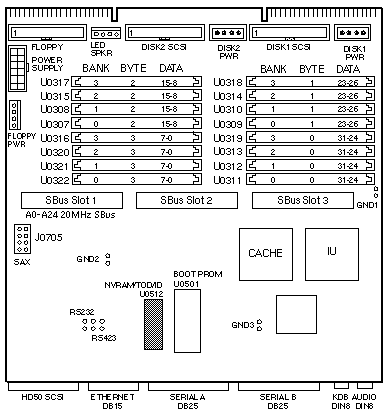

SPARCstation 2 (Sun-4/75)
| 501-1638 |
501-1744 |
501-1858 |
501-1859 |
501-1912 |
| 16MB FCC-A |
0MB FRU FCC-A |
16MB FCC-B |
0MB FRU FCC-B |
32MB FCC-B |
Power
- 16MB Board with 4MB SIMMs
- 3.6 Amps @ +5Vdc
23.0 Watts
Notes
- End of Support Life for the SPARCstation 2 is 10/29/98.
- The minimum operating system is SunOS 4.1.1.
- The final operating system is Solaris 7.
- Install Load Board 501-1667 in systems without a disk drive and SBus cards.
References
- SPARCstation 2 Installation Guide, 800-5035, SunOS 4.1.1.
- SPARCstation 2 Installation Guide, 800-5701, SunOS 4.1.1 Rev B.

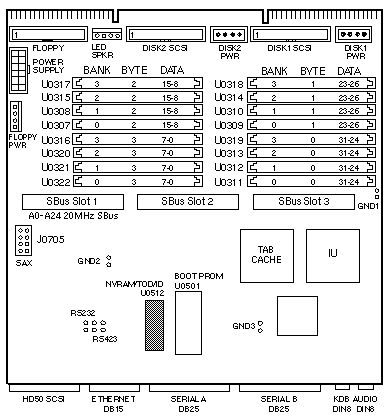

SPARCstation 2 (Sun-4/75)
| 501-1989 |
501-1995 |
501-1926 |
| 16MB FCC-B |
0MB FRU FCC-B |
32MB FCC-B |
Power
- 16MB Board with 4MB SIMMs
- 3.6 Amps @ +5Vdc
- 23.0 Watts
Notes
- End of Support Life for the SPARCstation 2 is 10/29/98.
- The minimum operating system is SunOS 4.1.1.
- The final operating system is Solaris 7.
- Install Load Board 501-1667 in systems without a disk drive and
SBus cards.
References
- SPARCstation 2 Installation Guide, 800-5035, SunOS 4.1.1.
- SPARCstation 2 Installation Guide, 800-5701, SunOS 4.1.1 Rev B.

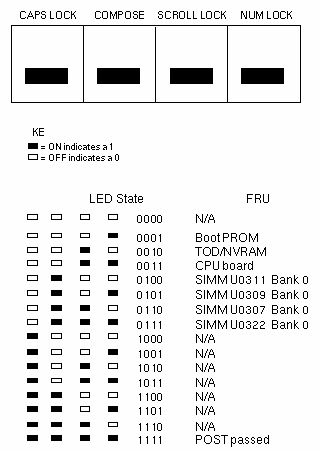

Power On Self Test Error Codes
Type-4, Type-5, and Type-5c Keyboard
|
