Mono Frame Buffer

SPARCstation Voyager

501-2394 / 501-2494 / 501-2744



Notes

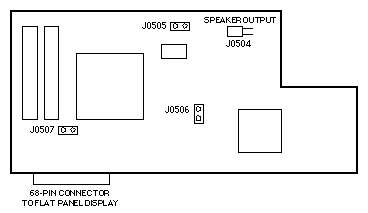

  1. Jumpers J0505, J0506, and J0507 are Ground points.
  2. The flat panel resolution is 1152x900, 64.5KHz, 60.2Hz.

Reference

SPARCstation Voyager Service Manual, 801-3872.
