SPARCserver 600MP

SS630MP / SS670MP / SS690MP

501-1686
0MB FRU
w/o MBus Module

Power

0MB CPU w/o SPARC Module
14.27 Amps @ +5Vdc
71.35 Watts

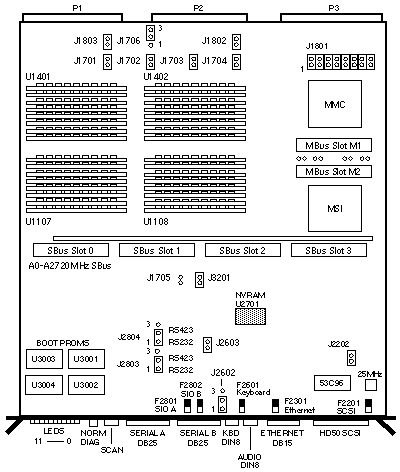

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1701
J1702
J1703
J1704
J1705		 1-2
1-2
1-2
1-2
1-2		 In
In
In
In
Out		 Enable internal VME arbiter
Enable internal VME arbiter
Enable internal VME arbiter
Enable internal VME arbiter
Disable internal VME arbiter
J1706
J1706		 1-2
2-3		 Out
In		 Connect P1.SYSRST* to VME.RST.IN*
Connect VME.RST.OUT* to P1.SYSRST*
J1801 1-2
3-4
5-6
7-8
9-10
11-12
13-14
15-16		 In
In
In
In
In
In
In
In/Out		 Enable VME IRQ7
Enable VME IRQ6
Enable VME IRQ5
Enable VME IRQ4
Enable VME IRQ3
Enable VME IRQ2
Enable VME IRQ1
Not connected
J1802 1-2 In Enable 16MHz clock
J1803 1-2 In Enable VME Slot-1 functionality
J2202 1-2 In Enable 25MHz ESP-236 clock
J2602 1-2
2-3		 In
In		 Mouse TD grounded (default)
Mouse TD enabled (optional)
J2603 1-2 In Enable 19MHz SCC clock
J2803 1-2
2-3		 In
In		 Select RS-232 (-12V) (default)
Select RS-423
J2804 1-2
2-3		 In
In		 Select RS-232 (+12V) (default)
Select RS-423
J3201 1-2 In Enable 80 MHz clock

SPARCserver 600MP

SS630MP / SS670MP / SS690MP

501-2055
0MB FRU
w/o MBus Module

Power

0MB CPU w/o SPARC Module
14.27 Amps @ +5Vdc
71.35 Watts

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1701
J1702
J1703
J1704
J1705		 1-2
1-2
1-2
1-2
1-2		 In
In
In
In
Out		 Enable internal VME arbiter
Enable internal VME arbiter
Enable internal VME arbiter
Enable internal VME arbiter
Disable internal VME arbiter
J1706
J1706		 1-2
2-3		 Out
In		 Connect P1.SYSRST* to VME.RST.IN*
Connect VME.RST.OUT* to P1.SYSRST*
J1801 1-2
3-4
5-6
7-8
9-10
11-12
13-14
15-16		 In
In
In
In
In
In
In
In/Out		 Enable VME IRQ7
Enable VME IRQ6
Enable VME IRQ5
Enable VME IRQ4
Enable VME IRQ3
Enable VME IRQ2
Enable VME IRQ1
Not connected
J1802 1-2 In Enable 16MHz clock
J1803 1-2 In Enable VME Slot-1 functionality
J2202 1-2 In Enable 25MHz ESP-236 clock
J2602 1-2
2-3		 In
In		 Mouse TD grounded (default)
Mouse TD enabled (optional)
J2603 1-2 In Enable 19MHz SCC clock
J2803 1-2
2-3		 In
In		 Select RS-232 (-12V) (default)
Select RS-423
J2804 1-2
2-3		 In
In		 Select RS-232 (+12V) (default)
Select RS-423
J3201 1-2 In Enable 80 MHz clock

Notes

  1. The minimum operating system (SM100 Module) is Solaris 1.0.1.
  2. The final software release for the SPARCserver 600MP is Solaris 2.5.1.
  3. The SM41 requires Boot PROM 2.8v2 or greater.
  4. The SM51, SM520, and SM521 require Boot PROM 2.10.
  5. All SPARC modules are compatible with both 501-1686 and 501-2055.

References

  1. SuperSPARC Module Installation Guide, 801-2035.
  2. 600MP Boot PROM 2.10 Upgrade Product Note, 801-5490.

SS600MP Configured System Boards

PART NUMBER SIZE MODULE FRU
<=501-1894-11 64MB 1 SM100 501-1686
>=501-1894-12 64MB 1 SM100 501-2055

<=501-1895-03 64MB 2 SM100 501-1686
>=501-1895-04 64MB 2 SM100 501-2055

<=501-1896-11 128MB 1 SM100 501-1686
>=501-1896-12 128MB 1 SM100 501-2055

<=501-1897-11 128MB 1 SM100 501-1686
>=501-1897-12 128MB 1 SM100 501-2055

501-2056-xx 64MB 1 SM41 501-2055
501-2057-xx 128MB 1 SM41 501-2055
501-2072-xx 128MB 2 SM41 501-2055
501-2300-xx 64MB 2 SM41 501-2055
501-2475-xx 64MB 1 SM51 501-2055
501-2386-xx 128MB 2 SM51 501-2055
501-2459-xx 128MB 2 SM52 501-2055

SuperSPARC Module Software Compatibility

SPARC
MODULE		 MODULES
INSTALLED		 SOLARIS
RELEASE		 SunOS
RELEASE
SM100 1 or 2 1.0.1 4.1.2
SM41 1 1.1 4.1.3
SM41 2 2.1 5.1
SM51 1 1.1 4.1.3
SM51 2 2.1 5.1
SM52x 1 or 2 2.3 5.3
SM61 1 1.1.1B 4.1.3U1B
SM61 2 2.3 5.3

SS600MP System Board Memory Map

Notes

  1. A memory bank is 16 SIMMs of the same size and speed.
  2. The minimum memory configuration is 16 SIMMs in Bank 0.
  3. Bank 1 must be fully populated if expansion memory is added.
  4. Use 4MB SIMM 501-1739-01 or 501-2460-01.
  5. Use 16MB SIMM 501-2060-01.
  6. Use Standoff 330-1372-01 and Screw 230-1261-01, or use Standoff 330-1477-01, to fasten the MBus and SBus cards to the CPU.

Reference

600MP System Board and Expansion Memory Installation and Service Manual, 800-5318.
